Rover 5 chassis with 2 encoders and PMAA plate
prev zoom next
Rover 5 chassis with 2 encoders and PMAA plate
  • NO.:RS011 2/2P
  • Brand:DAGU
  • Weight:2.000kilogram
  • Sales time:2017-04-25
  • Goods click count:1431
  • Market price:$82.50
    Shop price:$55.00
    Registered Users:$52.25
  • Rank: comment rank 5
  • Total:
  • gifts for buying:5 credit
  • Quantity:

Goods Brief:

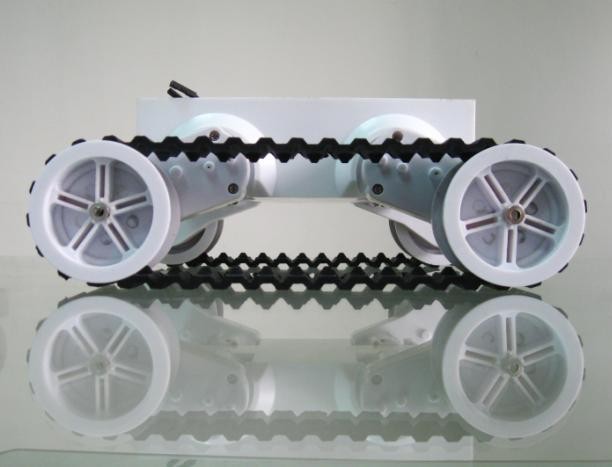

Rover 5 is a new breed of tracked robot chassis designed specifically for students and hobbyist. Unlike

conventional tracked chassis’s the clearance can be adjusted by rotating the gearboxes in 5-degree

increments. “Stretchy” rubber treads maintain tension as the clearance is raised.

Each gearbox has an 87:1 ratio includes a hall effect quadrature encoder that gives
1000 pulses over 3 revolutions of the output shaft. The chassis can be upgraded
to include four motors and encoders making it ideal for mecanum wheels.

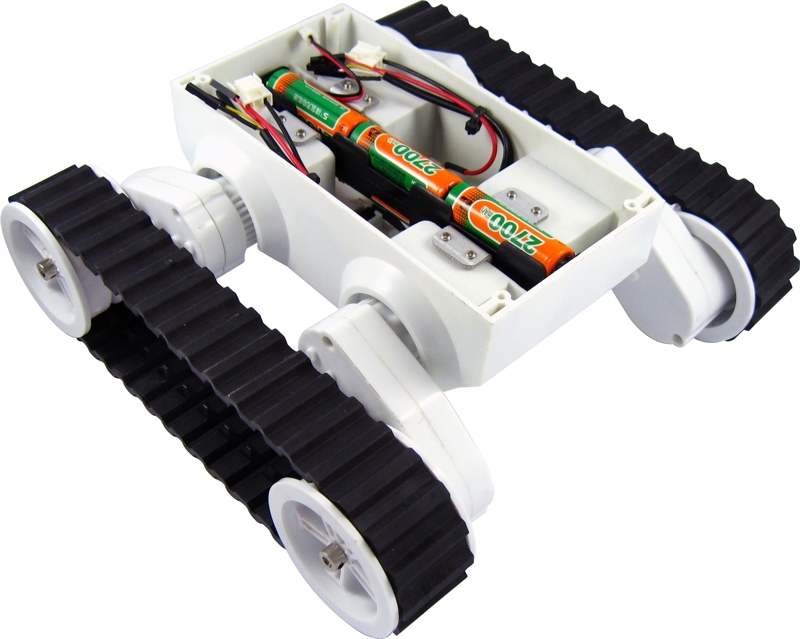

Inside of the chassis are 4 noise suppression coils at the bottom and a battery holder that accepts 6x AA

batteries. It is recommended to use NiMh batteries as they last longer and have a higher current output than

Alkaline batteries.



Video of the chassis in action can be seen here:

Video indoors autonomous: http://v.youku.com/v_show/id_XMjE5NzkwODA0.html

Video outdoors RC mode: http://v.youku.com/v_show/id_XMjIwMTkxODk2.html



Motor rated voltage: 7.2V

Motor stall current: 2.5A

Output shaft stall torque: 10Kg/cm

Gearbox ratio: 86.8:1

Encoder type: hall encoder

Encoder resolution: 1000 state changes per 3 wheel rotations

Speed: 1Km/hr


ComMotion Shield on Rover 5    (ComMotion Shield :http://www.dagurobot.com/goods.php?id=174)



27_62_img_2292 (small).jpg















If removed Rover 5 standard wheels and tracks, can be extended caster:



Manul download: LINK
