Hexapod robot chassis(controller not included)
prev zoom
Hexapod robot chassis(controller not included)
  • NO.:RS024
  • Brand:DAGU
  • Weight:0gram
  • Sales time:2013-12-27
  • Goods click count:7657
  • Market price:$149.99
    Shop price:$99.99
    Registered Users:$94.99
  • Rank: comment rank 5
  • Total:
  • gifts for buying:5 credit
  • Quantity:
  •

Goods Brief:

Attribute

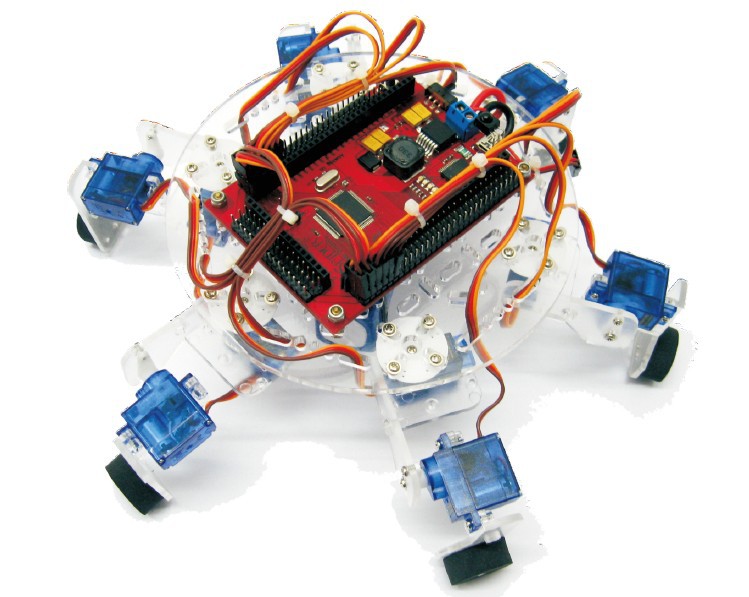

 61_103_hexapod robot chassis.jpg

The 12DOF Hexapod robot chassis from DAGU is a simple, low cost robot chassis designed for students and novices.




Magnetic servo clutches protect the servos from stripped gears.

Simple sample code for Arduino compatible controllers allows the chassis to be driven in any direction using common TV remotes.











Each kit comes in a colour printed box with English instruction manual and software on CD. Programming cable supplied separately.



6 foot spider robot performances, science and technology section demonstrates, anniversary, technological innovation and training


Product Configuration:

1.  6 legged spider robot platform

2 .12 9g servos


controller not included




Manaul:download link.



Features: 48-way steering spider board controller (C language compiler environment, compatible with arduino,7 -30V power supply) to control six-legged spider robots mimic real biological walking requires some programming skills, we can write so real life image.

 ATmega1280 16MHz CPU







 128K FLASH, 8K SRAM and 4K EEPROM
USB interface and ISP socket
Built in 3A switch mode power supply (7V - 30V input)
70 IO pins with male and female headers
Support for up to 48 servos
16x10bit analog inputs
15x 8bit PWM outputs
1xI2C
6x External interrupt pins
4x Serial communication
Comes with Arduino boot-loader installed

Description: 6-legged (12 servos) mimic spider on the ground forward, backward, turning and other variety of actions.

Teaching Objective: C programming language or arduino with mathematical algorithm to unify the robot's six foot pace, students complete bionic spider walking movements, to give students the complexity of multi-legged robots have some programming knowledge and exercise, serve to strengthen C language or languages arduino real purpose of the exercise.
